Hansen 100 Series
Danfoss Hansen 100 Series pneumatic quick disconnect couplings provide compact 1/4 inch body size connection points for compressed air service with pin-lock engagement and automatic push-to-connect operation.
Compact pneumatic couplings for air service

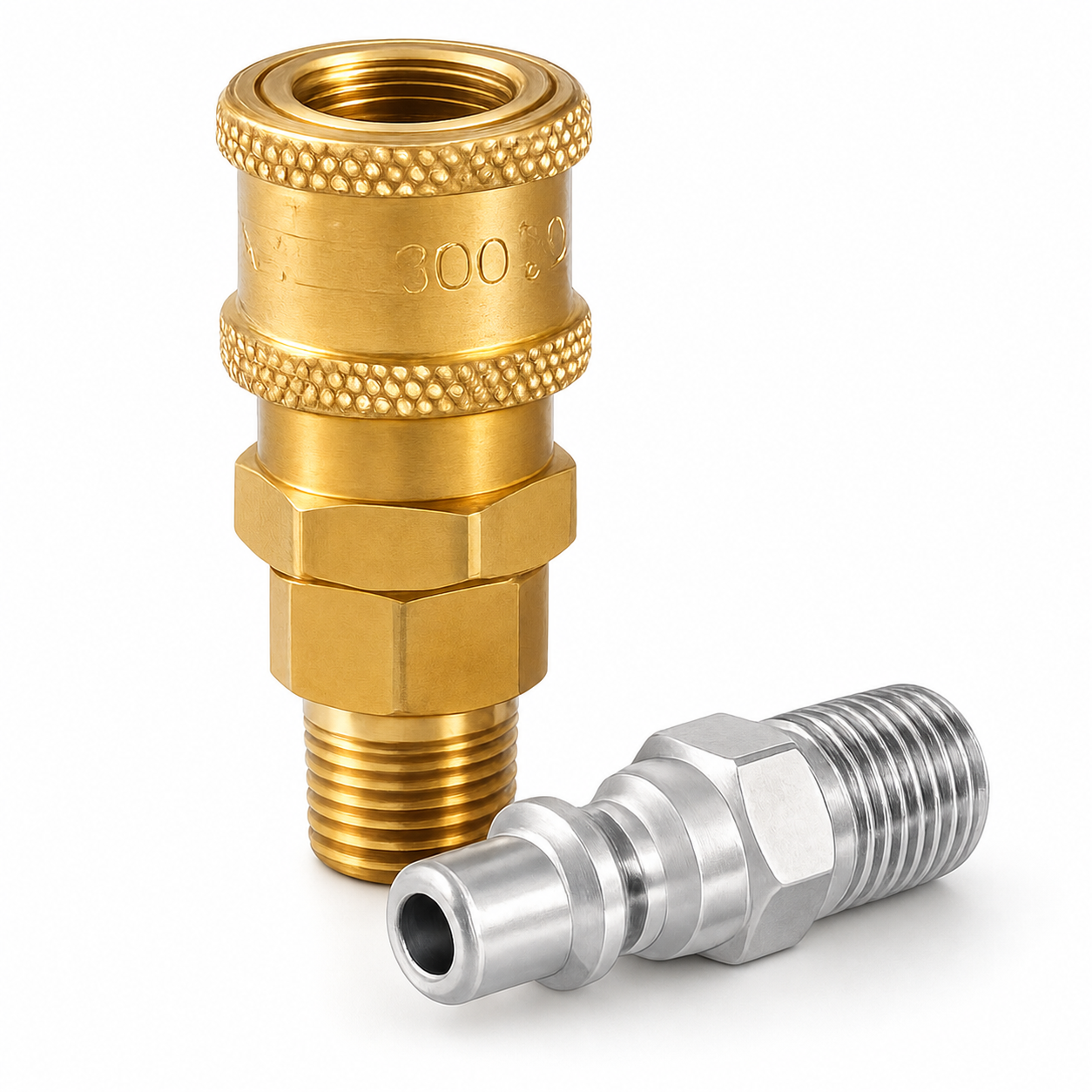

The Hansen 100 Series is a compact pneumatic quick disconnect coupling line built around a 1/4 inch body size with a push-to-connect pin-lock design. The series is offered in female thread, hose stem, and hose clamp socket styles with matching plug connections for general compressed air service.
Standard construction uses zinc trivalent plated carbon steel bodies with Buna-N sealing, making the series a practical fit for plant air connections, maintenance work, and pneumatic tool service where compact size and straightforward interchange are important.
Product features
- Automatic push-to-connect operation.
- Pin-lock connection style for compressed air service.
- Standard body material: zinc trivalent plated carbon steel.
- Standard seal material: Buna-N.

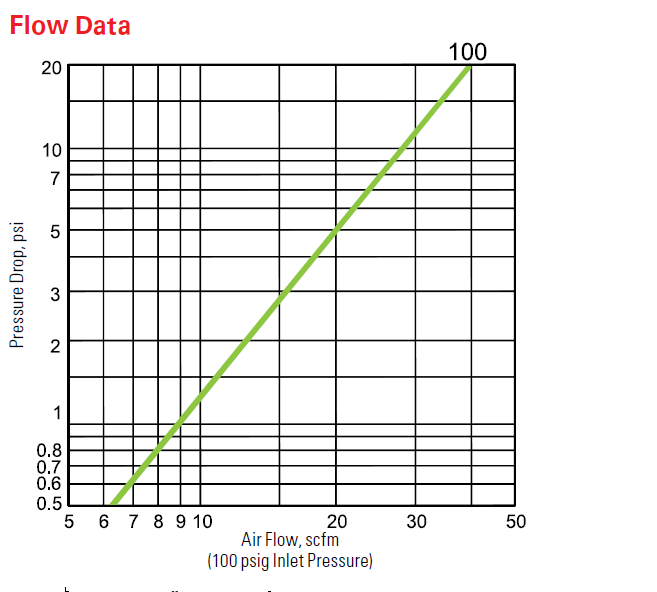

100 Series flow performance
Click the flow data image to open it larger in a new window.
Where the 100 Series is used
- Construction
- Maintenance and repair
- In-plant/industrial
- Pneumatic tools
Available end styles
- Female pipe thread sockets.
- Hose stem sockets and plugs.

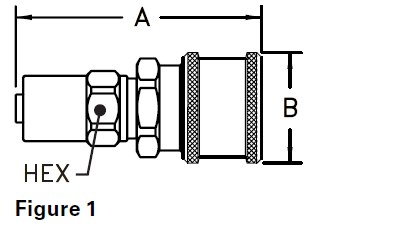

- Hose clamp sockets for hose assemblies.
Material details
- Socket body: zinc trivalent plated carbon steel.
- Seals: Buna-N.
- Plugs use the matching 100 Series interchange profile.
100 Series connection tables

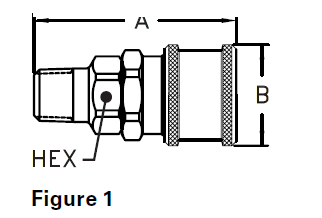

Male End Connections
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Fig. | A (in) | B (in) | Hex (in) | A (mm) | B (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 101 | Socket/Female | 1/4 | 1/8 | 1/8-27 Male NPTF | 1 | 1.86 | 1.03 | 0.69 | 47.2 | 26.2 | 17.5 |
| 103 | Socket/Female | 1/4 | 1/4 | 1/4-18 Male NPTF | 1 | 2.05 | 1.03 | 0.69 | 52.1 | 26.2 | 17.5 |
| 105 | Socket/Female | 1/4 | 3/8 | 3/8-18 Male NPTF | 1 | 2.01 | 1.03 | 0.69 | 51.1 | 26.2 | 17.5 |
Female End Connections

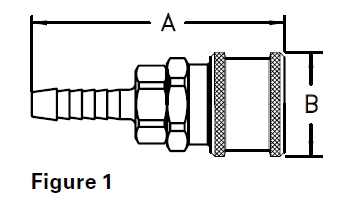

Hose Stem End Connections
Male End Connections
Female End Connections
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Fig. | C (in) | D (in) | Hex (in) | C (mm) | D (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1G2 | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | 2 | 1.43 | 0.79 | 0.69 | 36.3 | 20.1 | 17.5 |
Need help matching a Hansen 100 Series coupling?
We can help identify the right 100 Series socket, plug, or dust cap configuration for your pneumatic application.
