Hansen 3000 Series
Hansen 3000 Series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids, combining easy automatic connection with the interchange profile widely used across industrial pneumatic service.
Industrial interchange pin lock pneumatic couplings
The 3000 Series is the 1/4 body size member of Hansen’s industrial interchange pin lock family. This series is built for compressed air, gases, and liquids, and uses an automatic push-to-connect design that supports fast connection, line separation, and automatic shut-off of the socket/female end of line.
The 3000 platform follows the same industrial interchange concept used throughout the broader 3000/4000/5000/6000 family and is commonly selected where reliable pneumatic connection, practical serviceability, and broad interchange acceptance matter.
Automatic pin lock design for industrial pneumatic service
Connection Design
- Easy, automatic push-to-connect design.
- Fast connection and disconnection of lines.
- Automatic shut-off of the socket/female end of line.
Interchange & Service
- Accepts US industrial interchange plugs/males.
- 1/4 body size range also accepts ISO 6150 Series B and A-A-59439 profiles.
- Optional sleeve lock available to help prevent accidental disconnection.
Materials
- Standard body material: brass.
- Standard seal material: Buna-N.
- Optional seal and valve materials include silicone, FKM, and EPDM.
3000 Series operating data
| Series | Body Size | Max. Operating Pressure | Max. Operating Pressure | Min. Burst Pressure | Min. Burst Pressure | Rated Flow | Rated Flow |
|---|---|---|---|---|---|---|---|
| (in) | (bar) | (psi) | (bar) | (psi) | (lpm) | (scfm) | |
| 3000 | 1/4 | 138 | 2,000 | 552 | 8,000 | 680 | 24 |
Where the 3000 Series is used
- Industrial breathing air
- General pneumatics
- Maintenance and repair
- Fluid transfer
Accepted plug profiles
- US Industrial Interchange
- ISO 6150 Series B
- A-A-59439
§ With ball check. † With bleeder ball check to reduce hose whip. ** Nickel plated.
3000 Series flow performance
† With bleeder ball check to reduce hose whip. * Nickel plated.
3000 Series connection tables
Filter visible part numbers
Showing all rows in the active panel.
Dust Caps and Dust Plugs
| Series | Dust Cap Metal | Dust Plug Metal | Dust Plug Vinyl |
|---|---|---|---|
| 3000 | XPDC3000* | SDC3000* | XPSDC1HK |
* Brass
Replacement Parts
| Part Number | Description |
|---|---|
| V30 | Standard Steel Valve |
| BV30 | Brass Valve |
| LLV30 | Stainless Steel Valve |
| VS30 | Valve Spring |
| W30 | Washer |
Legacy 3000 Series Components
If you have a Hansen 3000 Series coupling from 2010 or earlier, replacement parts are still available. After 2010, the valve design changed to a more circular profile, while the earlier design used a more spade-style valve. The washer, spring components, and socket end changed as part of that update.
| Part Number | Description |
|---|---|
| SE3000 | Socket End |
| V3000 | Valve Component |
| VS3000 | Valve Spring Component |
| VVS3000 | Valve Spring Support Component |
| W3000 | Washer Component |

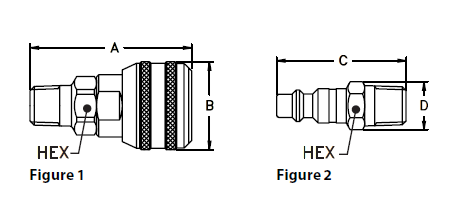

Male End Connections
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Material | Fig. | A (in) | B (in) | Hex (in) | A (mm) | B (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2900 | Socket/Female | 1/4 | 1/8 | 1/8-27 NPTF | Brass | 1 | 2.00 | 1.19 | 0.69 | 50.80 | 30.23 | 17.53 |
| 3100E | Socket/Female | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 1 | 2.19 | 1.19 | 0.69 | 55.63 | 30.23 | 17.53 |
| 3100HVS | Socket/Female | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 1 | 2.19 | 1.19 | 0.69 | 55.63 | 30.23 | 17.53 |
| 3100LLV143OC | Socket/Female | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 1 | 2.19 | 1.19 | 0.69 | 55.63 | 30.23 | 17.53 |
| 3100LSLS | Socket/Female | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 1 | 2.19 | 1.19 | 0.69 | 55.63 | 30.23 | 17.53 |
| 3100SLAA | Socket/Female | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 1 | 2.19 | 1.19 | 0.69 | 55.63 | 30.23 | 17.53 |
| 3100SLOC | Socket/Female | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 1 | 2.19 | 1.19 | 0.69 | 55.63 | 30.23 | 17.53 |
| 3300E | Socket/Female | 1/4 | 3/8 | 3/8-18 NPTF | Brass | 1 | 2.15 | 1.19 | 0.69 | 54.61 | 30.23 | 17.53 |
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Material | Fig. | C (in) | D (in) | Hex (in) | C (mm) | D (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Steel | 2 | 1.75 | 0.62 | 0.56 | 44.45 | 15.85 | 14.22 |
| 10C§ | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Steel | 2 | 1.75 | 0.65 | 0.56 | 44.45 | 16.51 | 14.22 |
| 10G† | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Steel | 2 | 1.75 | 0.65 | 0.56 | 44.45 | 16.51 | 14.22 |
| 12E | Plug/Male | 1/4 | 1/8 | 1/8-27 NPTF | Steel | 2 | 1.59 | 0.58 | 0.50 | 40.39 | 14.73 | 12.70 |
| 12G† | Plug/Male | 1/4 | 1/8 | 1/8-27 NPTF | Steel | 2 | 2.38 | 0.77 | 0.69 | 60.45 | 19.56 | 17.53 |
| 14 | Plug/Male | 1/4 | 3/8 | 3/8-18 NPTF | Steel | 2 | 1.75 | 0.79 | 0.69 | 44.45 | 20.07 | 17.53 |
| 14G† | Plug/Male | 1/4 | 3/8 | 3/8-18 NPTF | Steel | 2 | 2.53 | 0.77 | 0.69 | 64.26 | 19.56 | 17.53 |
| B10 | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 2 | 1.75 | 0.62 | 0.56 | 44.45 | 15.75 | 14.22 |
| LL10 | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Stainless | 2 | 1.75 | 0.62 | 0.56 | 44.45 | 15.85 | 14.22 |
| 10NK** | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Steel | 2 | 1.75 | 0.62 | 0.56 | 44.45 | 15.75 | 14.22 |
§ With ball check. † With bleeder ball check to reduce hose whip. ** Nickel plated.
Female End Connections
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Material | Fig. | A (in) | B (in) | Hex (in) | A (mm) | B (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2800 | Socket/Female | 1/4 | 1/8 | 1/8-27 NPTF | Brass | 3 | 1.89 | 1.19 | 0.69 | 48.01 | 30.23 | 17.53 |
| 3000 | Socket/Female | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 3 | 2.11 | 1.19 | 0.69 | 53.59 | 30.23 | 17.53 |
| 3000S24 | Socket/Female 90° Elbow | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 3 | – | – | – | – | – | – |
| 3000BVHVS192 | Socket/Female | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 3 | 2.11 | 1.19 | 0.69 | 53.59 | 30.23 | 17.53 |
| 3200 | Socket/Female | 1/4 | 3/8 | 3/8-18 NPTF | Brass | 3 | 2.19 | 1.19 | 0.75 | 55.63 | 30.23 | 19.05 |
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Material | Fig. | C (in) | D (in) | Hex (in) | C (mm) | D (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11 | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Steel | 4 | 1.63 | 0.79 | 0.69 | 41.40 | 20.07 | 17.53 |
| 11G† | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Steel | 4 | 2.44 | 0.77 | 0.69 | 61.98 | 19.56 | 17.53 |
| 13 | Plug/Male | 1/4 | 1/8 | 1/8-27 NPTF | Steel | 4 | 1.47 | 0.65 | 0.56 | 37.34 | 16.51 | 14.22 |
| 15E | Plug/Male | 1/4 | 3/8 | 3/8-18 NPTF | Steel | 4 | 1.69 | 0.94 | 0.81 | 42.93 | 23.88 | 20.57 |
| 11B | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Brass | 4 | 1.63 | 0.79 | 0.69 | 41.40 | 20.07 | 17.53 |
| LL11 | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Stainless | 4 | 1.63 | 0.79 | 0.69 | 41.40 | 20.07 | 17.53 |
| 11NK* | Plug/Male | 1/4 | 1/4 | 1/4-18 NPTF | Steel | 4 | 1.63 | 0.79 | 0.69 | 41.40 | 20.07 | 17.53 |
† With bleeder ball check to reduce hose whip. * Nickel plated.

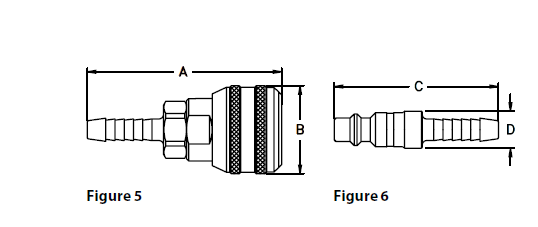

Hose Stem End Connections
| Part Number | Coupling Type | Body Size | Hose I.D. | Material | Fig. | A (in) | B (in) | A (mm) | B (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3600 | Socket/Female | 1/4 | 1/4 | Brass | 5 | 2.63 | 1.19 | 66.80 | 30.23 |
| 3600P | Socket/Female | 1/4 | 1/4 | Brass | 5, 5A | 2.40 | 1.19 | 60.96 | 30.23 |
| 3700E | Socket/Female | 1/4 | 3/8 | Brass | 5 | 2.63 | 1.19 | 66.80 | 30.23 |
| 3700P | Socket/Female | 1/4 | 3/8 | Brass | 5, 5A | 2.47 | 1.19 | 62.74 | 30.23 |
| 3800 | Socket/Female | 1/4 | 5/16 | Brass | 5 | 2.63 | 1.19 | 66.80 | 30.23 |
| Part Number | Coupling Type | Body Size | Hose I.D. | Material | Fig. | C (in) | D (in) | C (mm) | D (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 16 | Plug/Male | 1/4 | 1/4 | Steel | 6 | 2.22 | 0.50 | 56.39 | 12.70 |
| 16P‡ | Plug/Male | 1/4 | 1/4 | Steel | 6, 6A | 2.00 | 0.58 | 50.80 | 14.73 |
| 16NK* | Plug/Male | 1/4 | 1/4 | Steel | 6 | 2.22 | 0.50 | 56.39 | 12.70 |
| 17 | Plug/Male | 1/4 | 3/8 | Steel | 6 | 2.22 | 0.50 | 56.39 | 12.70 |
| 17G† | Plug/Male | 1/4 | 3/8 | Steel | 6 | 2.96 | 0.77 | 75.18 | 19.56 |
| 17P‡ | Plug/Male | 1/4 | 3/8 | Steel | 6, 6A | 2.06 | 0.50 | 52.32 | 12.70 |
| 17NK* | Plug/Male | 1/4 | 3/8 | Steel | 6 | 2.22 | 0.50 | 56.39 | 12.70 |
| 18E | Plug/Male | 1/4 | 5/16 | Steel | 6 | 2.22 | 0.50 | 56.39 | 12.70 |
| B17 | Plug/Male | 1/4 | 3/8 | Brass | 6 | 2.22 | 0.50 | 56.39 | 12.70 |
§ With ball check. † With bleeder ball check to reduce hose whip. ** Nickel plated.
Hose Clamp End Connections
| Part Number | Coupling Type | Body Size | Hose I.D. | Hose O.D. | Material | Fig. | A (in) | B (in) | Hex (in) | A (mm) | B (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3SA0 | Socket/Female | 1/4 | 3/16 | 7/16 | Brass | 7 | 2.65 | 1.19 | 0.56 | 67.31 | 30.23 | 14.22 |
| 3SB1 | Socket/Female | 1/4 | 1/4 | 15/32 | Brass | 7 | 2.72 | 1.19 | 0.63 | 69.09 | 30.23 | 16.00 |
| 3SB3 | Socket/Female | 1/4 | 1/4 | 1/2 | Brass | 7 | 2.72 | 1.19 | 0.63 | 69.09 | 30.23 | 16.00 |
| 3SB5 | Socket/Female | 1/4 | 1/4 | 9/16 | Brass | 7 | 2.72 | 1.19 | 0.69 | 69.09 | 30.23 | 17.53 |
| 3SB7 | Socket/Female | 1/4 | 1/4 | 5/8 | Brass | 7 | 2.72 | 1.19 | 0.75 | 69.09 | 30.23 | 19.05 |
| 3SC5 | Socket/Female | 1/4 | 5/16 | 9/16 | Brass | 7 | 2.78 | 1.19 | 0.69 | 70.61 | 30.23 | 17.53 |
| 3SC7 | Socket/Female | 1/4 | 5/16 | 5/8 | Brass | 7 | 2.78 | 1.19 | 0.75 | 70.61 | 30.23 | 19.05 |
| 3SC9 | Socket/Female | 1/4 | 5/16 | 11/16 | Brass | 7 | 2.78 | 1.19 | 0.81 | 70.61 | 30.23 | 20.57 |
| 3SD5 | Socket/Female | 1/4 | 3/8 | 9/16 | Brass | 7 | 2.84 | 1.19 | 0.69 | 72.14 | 30.23 | 17.53 |
| 3SD7 | Socket/Female | 1/4 | 3/8 | 5/8 | Brass | 7 | 2.84 | 1.19 | 0.75 | 72.14 | 30.23 | 19.05 |
| 3SD9 | Socket/Female | 1/4 | 3/8 | 11/16 | Brass | 7 | 2.84 | 1.19 | 0.81 | 72.14 | 30.23 | 20.57 |
| 3SD11 | Socket/Female | 1/4 | 3/8 | 3/4 | Brass | 7 | 2.84 | 1.19 | 0.88 | 72.14 | 30.23 | 22.35 |
| Part Number | Coupling Type | Body Size | Hose I.D. | Hose O.D. | Material | Fig. | C (in) | D (in) | Hex (in) | C (mm) | D (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3PB1 | Plug/Male | 1/4 | 1/4 | 15/32 | Steel | 8 | 2.31 | 0.70 | 0.63 | 58.67 | 17.78 | 16.00 |
| 3PB3 | Plug/Male | 1/4 | 1/4 | 1/2 | Steel | 8 | 2.31 | 0.70 | 0.63 | 58.67 | 17.78 | 16.00 |
| 3PB5 | Plug/Male | 1/4 | 1/4 | 9/16 | Steel | 8 | 2.31 | 0.77 | 0.69 | 58.67 | 19.56 | 17.53 |
| 3PB7 | Plug/Male | 1/4 | 1/4 | 5/8 | Steel | 8 | 2.31 | 0.84 | 0.75 | 58.67 | 21.34 | 19.05 |
| 3PC5 | Plug/Male | 1/4 | 5/16 | 9/16 | Steel | 8 | 2.38 | 0.77 | 0.69 | 60.45 | 19.56 | 17.53 |
| 3PC7 | Plug/Male | 1/4 | 5/16 | 5/8 | Steel | 8 | 2.38 | 0.84 | 0.75 | 60.45 | 21.34 | 19.05 |
| 3PD5 | Plug/Male | 1/4 | 3/8 | 9/16 | Steel | 8 | 2.44 | 0.77 | 0.69 | 61.98 | 19.56 | 17.53 |
| 3PD7 | Plug/Male | 1/4 | 3/8 | 5/8 | Steel | 8 | 2.44 | 0.84 | 0.75 | 61.98 | 21.34 | 19.05 |
| 3PD9 | Plug/Male | 1/4 | 3/8 | 11/16 | Steel | 8 | 2.44 | 0.91 | 0.81 | 61.98 | 23.11 | 20.57 |
| 3PD11 | Plug/Male | 1/4 | 3/8 | 3/4 | Steel | 8 | 2.44 | 0.98 | 0.88 | 61.98 | 24.89 | 22.35 |
Need help matching a 3000 Series coupling or replacement part?
We can help identify current production couplings, legacy 3000 Series service parts, dust caps, dust plugs, and replacement components for your application.
