Hansen Auto-Flo 23 & 24 Series

High-flow, automatic quick-connect one-way couplings for compressed air service, with Auto-Flo 23 covering Industrial, ARO 210, and Tru-Flate interchange plugs and Auto-Flo 24 operating with CEJN 320 and Rectus 25 interchange plugs.

Series Overview

Automatic one-way couplings for high-flow compressed air service

The Auto-Flo 23 and 24 Series are 1/4 inch nominal one-way shut-off couplings designed for compressed air applications where fast connection, quick disconnection, and automatic socket shut-off are important. Both series are built around an automatic push-to-connect design with a sleeve guard to help protect against accidental disconnection.

Auto-Flo 23 is a universal socket platform that works with Industrial Interchange, ARO 210, and Tru-Flate plugs. Auto-Flo 24 is designed for CEJN 320 and Rectus 25 interchange plugs, giving it its own dedicated plug profile and flow capability.

Hansen Auto-Flo 23 and 24 Series couplings
Product Features

Universal and dedicated interchange coverage in one compact family

Connection Design

  • Automatic push-to-connect design for rapid connection and disconnection.
  • Automatic shut-off of the socket end of the line.
  • Sleeve guard helps protect against accidental disconnects.

Interchange Coverage

  • Auto-Flo 23 accepts Industrial Interchange, ARO 210, and Tru-Flate plugs.
  • Auto-Flo 24 operates with CEJN 320 and Rectus 25 style plugs.
  • Auto-Flo 23 is positioned as an automatic universal coupling for common pneumatic interchange profiles.

Standard Materials

  • Socket body: brass.
  • Socket valve: brass.
  • Sleeve: zinc-plated steel.
  • Seals: Buna-N (nitrile), with stainless springs and locking balls.
Physical Characteristics

Operating data

Series Nominal Size Max Operating Pressure Max Operating Pressure
(psi) (bar)
Auto-Flo 23 1/4 in 150 10
Auto-Flo 24 1/4 in 150 10
Plug Interchange Rated Flow
(scfm)
Industrial Interchange 32
ARO 210 32
Tru-Flate 30
Auto-Flo 24 45

Air flow values are shown at 5 psi pressure drop and 100 psig inlet pressure.

Flow Data

Auto-Flo 23 & 24 performance

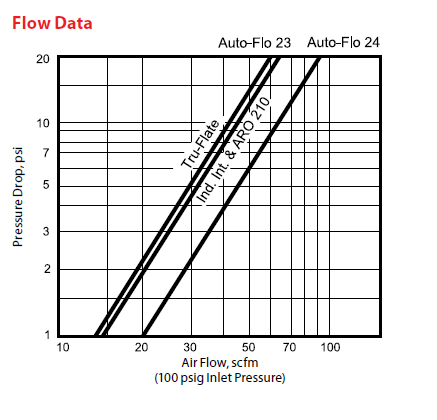

Hansen Auto-Flo 23 and 24 Series flow data

Click the flow data image to open it larger in a new window.

Auto-Flo 23

Auto-Flo 23 sockets and interchange plugs

Auto-Flo 23 figure 1 male pipe thread socket

Male End Connections

Part Number Coupling Type Body Size Thread Size Fig. A (in) B (in) Hex (in)
B23AS25MSocket/Female1/41/4-18 NPTF12.230.940.81
B23AS25MBSTSocket/Female1/41/4-19 BSPT12.230.940.81
B23AS37MSocket/Female1/43/8-18 NPTF12.230.940.81
Auto-Flo 23 figure 1 female pipe thread socket

Female End Connections

Part Number Coupling Type Body Size Thread Size Fig. A (in) B (in) Hex (in)
B23AS25FSocket/Female1/41/4-18 NPTF12.020.940.81
B23AS25FBSSocket/Female1/41/4-19 BSPP12.020.940.81
B23AS37FSocket/Female1/43/8-18 NPTF12.020.940.81
B23AS37FBSSocket/Female1/43/8-19 BSPP12.020.940.81
Auto-Flo 23 figure 1 hose stem socket

Hose Stem End Connections

Part Number Coupling Type Body Size Hose I.D. Fig. A (in) B (in)
B23AS25HSocket/Female1/41/412.760.94
B23AS31HSocket/Female1/45/1612.730.94
B23AS37HSocket/Female1/43/812.730.94
B23AS50HSocket/Female1/41/212.700.94
Auto-Flo 23 figure 2 male pipe thread plug

Interchange Plugs

Interchange Part Number Thread or Hose Size Connection Type Fig. C D Hex
(in) (in) (in)
Industrial26071/8-27 NPTFMale Pipe Thread21.420.580.50
Industrial26081/4-18 NPTFMale Pipe Thread21.680.650.56
Industrial2608B1/4-19 BSPTMale Pipe Thread21.680.650.56
Industrial20AP37M3/8-18 NPTFMale Pipe Thread21.680.790.69
ARO 21021AP25M1/4-18 NPTFMale Pipe Thread21.650.650.56
Auto-Flo 23 figure 3 female pipe thread plug

Interchange Plugs

Interchange Part Number Thread or Hose Size Connection Type Fig. C D Hex
(in) (in) (in)
Industrial26091/4-18 NPTFFemale Pipe Thread31.550.790.69
Industrial2609B1/4-19 BSPPFemale Pipe Thread31.550.790.69
Industrial20AP37F3/8-18 NPTFFemale Pipe Thread31.610.940.81
ARO 21021AP25F1/4-18 NPTFFemale Pipe Thread31.530.790.69
Auto-Flo 23 figure 2 hose stem plug

Interchange Plugs

Interchange Part Number Thread or Hose Size Connection Type Fig. C D Hex
(in) (in) (in)
Industrial39461/4 hose I.D.Hose Stem22.140.50–
Industrial39475/16 hose I.D.Hose Stem22.140.50–
Industrial22238E3/8 hose I.D.Hose Stem22.140.50–
Auto-Flo 24

Auto-Flo 24 sockets and CEJN/Rectus style plugs

Auto-Flo 24 figure 1 male pipe thread socket

Male End Connections

Part Number Coupling Type Body Size Thread Size Fig. A (in) B (in) Hex (in)
B24AS25MSocket/Female1/41/4-18 NPTF12.270.940.81
Auto-Flo 24 figure 1 female pipe thread socket

Female End Connections

Part Number Coupling Type Body Size Thread Size Fig. A (in) B (in) Hex (in)
B24AS25FSocket/Female1/41/4-18 NPTF12.060.940.81
Auto-Flo 24 figure 1 female pipe thread plug

Auto-Flo 24 Plugs

Part Number Thread or Hose Size Connection Type Fig. C D Hex
24AP25FBS1/4-19 BSPPFemale Pipe Thread11.460.790.69
