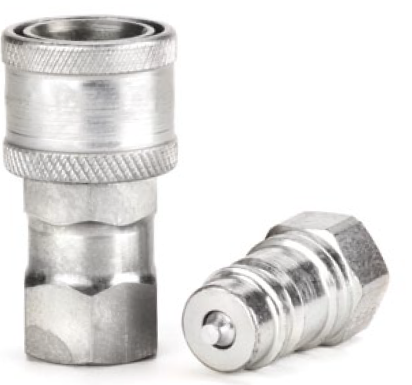

Hansen FD48 Series
Agricultural Couplings
Danfoss Hansen FD48 Series quick disconnect couplings are built for agricultural hydraulic service where Parker Bruning SM-250 interchange, dependable sealing, and 3,000 psi working pressure are important.
Poppet-style agricultural quick disconnect couplings
The Hansen FD48 Series is a poppet-style quick disconnect coupling designed to interchange with Parker Bruning SM-250 couplings where reliable sealing at both high and low pressure matters. The series is suited for agricultural hydraulic circuits that need durable field performance up to 3,000 psi.
Product Features
Agricultural Interchange
Designed to interchange with Parker Bruning SM-250 couplings for agricultural hydraulic service.
Dependable Sealing
Poppet-style valve construction for applications where excellent high and low pressure sealing is required.
3,000 PSI Performance
Built for working pressures up to 3,000 psi.
FD48 operating profile
| Body Size | Max Operating Pressure | Min Burst Pressure | Vacuum | Rated Flow | Air Inclusion | Fluid Loss |
|---|---|---|---|---|---|---|
| 1/4 | 210 bar / 3,000 psi | 840 bar / 12,000 psi | 28 in./Hg | 11 lpm / 3 gpm | 0.50 cc max. | 1.10 cc max. |
Typical FD48 use cases
- Agricultural hydraulic service
- Applications requiring Parker Bruning SM-250 interchange

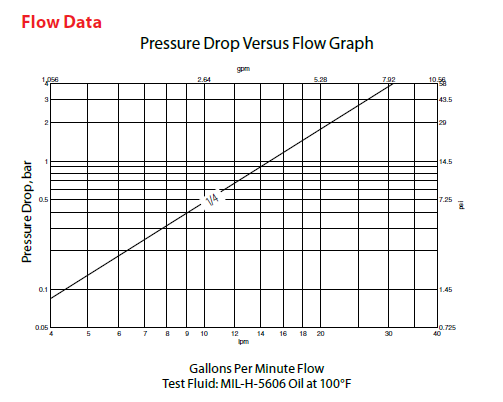

FD48 Series flow data
Hansen FD48 Series

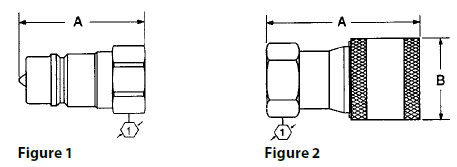

| Part Number | Coupling Type | Body Size | Port Size | Thread Size / Style | Fig. | A (in.) | B (in.) | Hex (in.) |
|---|---|---|---|---|---|---|---|---|
| FD48-1002-04-04 | Plug/Male | 1/4 | 1/4 | 1/4-18 Female NPT | 1 | 1.45 | – | .75 |
| FD48-1001-04-04 | Socket/Female | 1/4 | 1/4 | 1/4-18 Female NPT | 2 | 2.01 | 1.06 | .81 |
Need help matching an FD48 coupling or accessory?
If you are trying to match an existing FD48 agricultural coupling, verify a thread configuration, or confirm the right dust protection option for a hydraulic setup, we can help narrow it down.
