Hansen FD85 Series
Thread-to-Connect Couplings

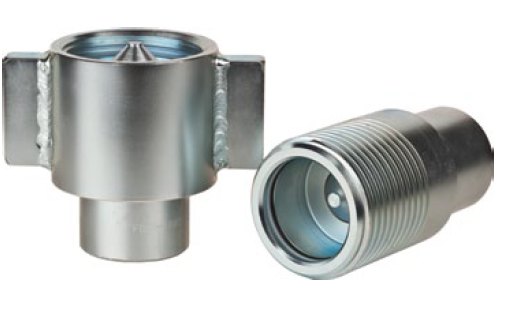

Hansen FD85 Series is a thread to connect coupling most commonly used in Oil and Gas applications, but can also be found on demanding applications on both mobile and stationary equipment where operating pressures of 5,000 psi are present.
Thread-to-connect couplings for demanding hydraulic and oilfield service
Hansen FD85 Series is a thread to connect coupling most commonly used in Oil and Gas applications, but can also be found on demanding applications on both mobile and stationary equipment where operating pressures of 5,000 psi are present.
Product Features
Connection Design
- Thread-to-connect feature allows for use in high vibration and impulse applications
- Connect-under-pressure capability up to 5,000 psi (345 bar)
- Wing nut and hex flat design allows for easy connection and disconnection
- 3/4 inch design is offered in a hex nut configuration
Materials
- Standard body material: zinc trivalent plated carbon steel
- Stainless steel construction available upon request
- Female NPTF and BSPP ends available
Sealing
- Standard seal material: Nitrile (NBR)
- FKM seals are available upon request
FD85 operating profile
| Body Size (in) |
Maximum Operating Pressure | Minimum Burst Pressure | Rated Flow L/min / gpm |
Fluid Loss ml-cc. |
Air Inclusion ml-cc. |
||||
|---|---|---|---|---|---|---|---|---|---|
| Connected bar / psi |
Plug/Male Half bar / psi |
Socket/Female Half bar / psi |
Connected bar / psi |
Plug/Male Half bar / psi |
Socket/Female Half bar / psi |
||||
| 3/4 | 345 / 5,000 | 345 / 5,000 | 345 / 5,000 | 1,380 / 20,000 | 1,380 / 20,000 | 1,380 / 20,000 | 100 / 26.4 | 10 | 10 |
| 1 | 345 / 5,000 | 345 / 5,000 | 345 / 5,000 | 1,380 / 20,000 | 1,380 / 20,000 | 1,380 / 20,000 | 189 / 50 | 20 | 26 |
| 1-1/4 | 345 / 5,000 | 345 / 5,000 | 345 / 5,000 | 1,035 / 15,000 | 1,035 / 15,000 | 1,035 / 15,000 | 288 / 76 | 20 | 40 |
| 1-1/2 | 345 / 5,000 | 345 / 5,000 | 345 / 5,000 | 1,035 / 15,000 | 1,035 / 15,000 | 1,035 / 15,000 | 379 / 100 | 83 | 85 |
| 2 | 345 / 5,000 | 345 / 5,000 | 345 / 5,000 | 1,035 / 15,000 | 1,035 / 15,000 | 1,035 / 15,000 | 757 / 200 | 181 | 240 |
Lloyd’s Register certification
The FD85 Series carries a Lloyd’s Register certificate for fire conditions outlined in API 16D and EUB Directive 36. These assemblies are specified to maintain pressure in the connected state when exposed to 700C / 1,300F for five minutes, when both mating halves are Danfoss FD85 Series thread-to-connect couplings.
Where FD85 is commonly used
- Oilfields
- Offshore Drilling
- Construction
- Oil and Gas

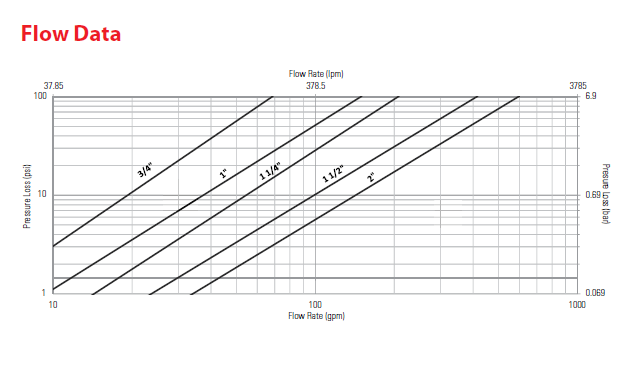

FD85 Series flow data
Hansen FD85 Series
Plugs (Male)

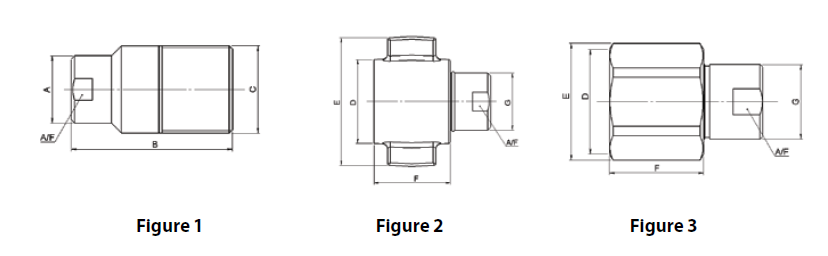

| Part Number | Body Size | NPT | BSPP | Fig. | A (in) | B (in) | C (in) | A (mm) | B (mm) | C (mm) | A/F (in) | A/F (mm) | Weight (lb) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FD85-1001-12-12 | 3/4 | 3/4-14 | – | 1 | 1.39 | 3.27 | 1.74 | 35.2 | 83.1 | 44.3 | 1 1/3 | 33 | 1.162 | 480 |
| FD85-1001-16-16 | 1 | 1-11 1/2 | – | 1 | 1.77 | 4.17 | 2.25 | 45 | 106 | 57.1 | 1 5/8 | 41 | 2.921 | 1120 |
| FD85-1001-20-20 | 1-1/4 | 1 1/4-11 | – | 1 | 2.15 | 5.37 | 2.62 | 54.5 | 136.4 | 66.6 | 2 | 50 | 5.633 | 1875 |
| FD85-1001-24-24 | 1-1/2 | 1 1/2-11 1/2 | – | 1 | 2.5 | 5.99 | 3.25 | 63.5 | 152.2 | 82.55 | 2 3/8 | 60 | 7.721 | 3150 |
| FD85-1017-24-24 | 1-1/2 | – | G 1 1/2-11 | 1 | 2.5 | 5.99 | 3.25 | 63.5 | 152.2 | 82.55 | 2 3/8 | 60 | 7.721 | 3150 |
Sockets (Female)
| Part Number | Body Size | NPT | BSPP | Fig. | D (in) | E (in) | F (in) | G (in) | D (mm) | E (mm) | F (mm) | G (mm) | A/F (in) | A/F (mm) | Weight (lb) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FD85-1003-12-12 | 3/4 | 3/4-14 | – | 3 | 1.94 | 2.17 | 1.74 | 1.39 | 49.2 | 55 | 44.3 | 35.2 | 1 1/3 | 33 | 1.162 | 527 |
| FD85-1003-16-16 | 1 | 1-11 1/2 | – | 2 | 2.68 | 4.25 | 2.2 | 1.77 | 68 | 108 | 56 | 45 | 1 5/8 | 41 | 2.921 | 1325 |
| FD85-1003-20-20 | 1-1/4 | 1 1/4-11 | – | 2 | 3.15 | 4.72 | 2.8 | 2.15 | 80 | 120 | 71 | 54.5 | 2 | 50 | 5.633 | 2555 |
| FD85-1003-24-24 | 1-1/2 | 1 1/2-11 1/2 | – | 2 | 3.66 | 5.67 | 3.31 | 2.5 | 93 | 144 | 84 | 63.5 | 2 3/8 | 60 | 7.721 | 3502 |
| FD85-1019-24-24 | 1-1/2 | – | G 1 1/2-11 | 2 | 3.66 | 5.67 | 3.31 | 2.5 | 93 | 144 | 84 | 63.5 | 2 3/8 | 60 | 7.721 | 3502 |
