Description

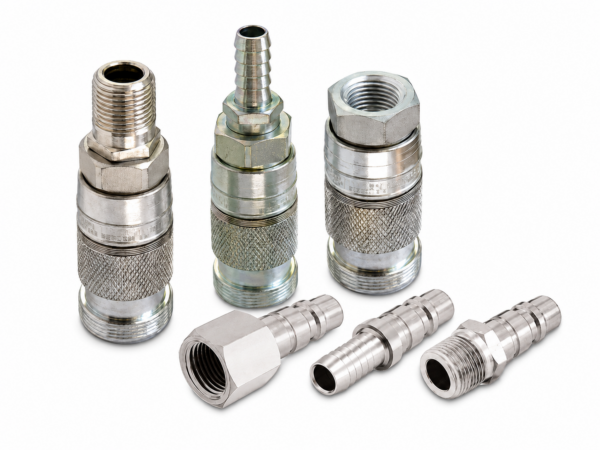

Hansen 23204014 – Full-Bore Series
The Hansen 23204014 is a Full-Bore Series socket/female designed for pneumatic service where downstream venting and high air flow are important.
This configuration uses the Full-Bore straight-through design with sequential two-sleeve actuation to relieve pressure and help prevent accidental uncoupling.
Specifications
- Part Number: 23204014
- Series: Hansen Full-Bore Series
- Coupling Type: Socket/Female
- Body Size: 1/2
- Port Size: 1/2
- Thread Type: 1/2-14 NPTF
- Figure Reference: 1
- Dimensions: A 4.43 x B 1.38 x Hex 1.13
- Metric Dimensions: A 112.5 x B 35.1 x Hex 28.7 mm
- Material: Zinc trivalent plated carbon steel
- Seal Material: Buna-N
- Service Note: Male pipe thread socket configuration
