Danfoss Hansen 2R15 Pneumatic Quick-Disconnect Socket – 2RL Series, 1/4-18 Male NPTF

Description

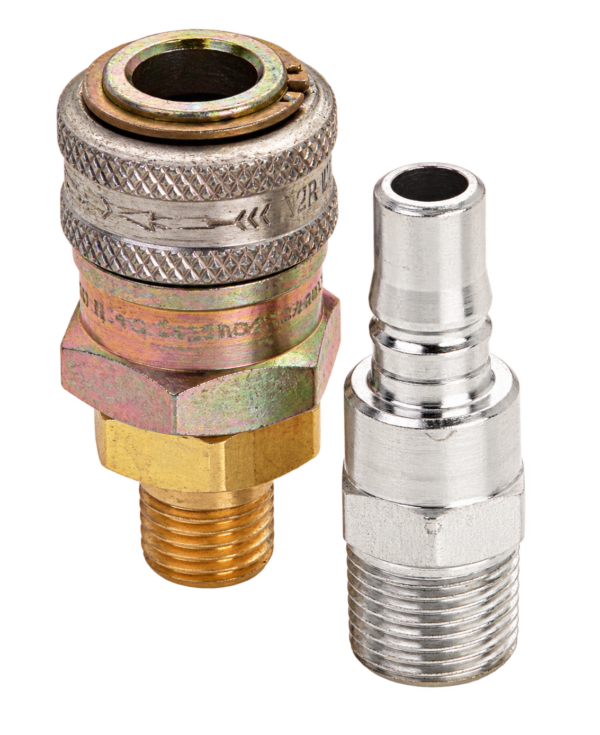

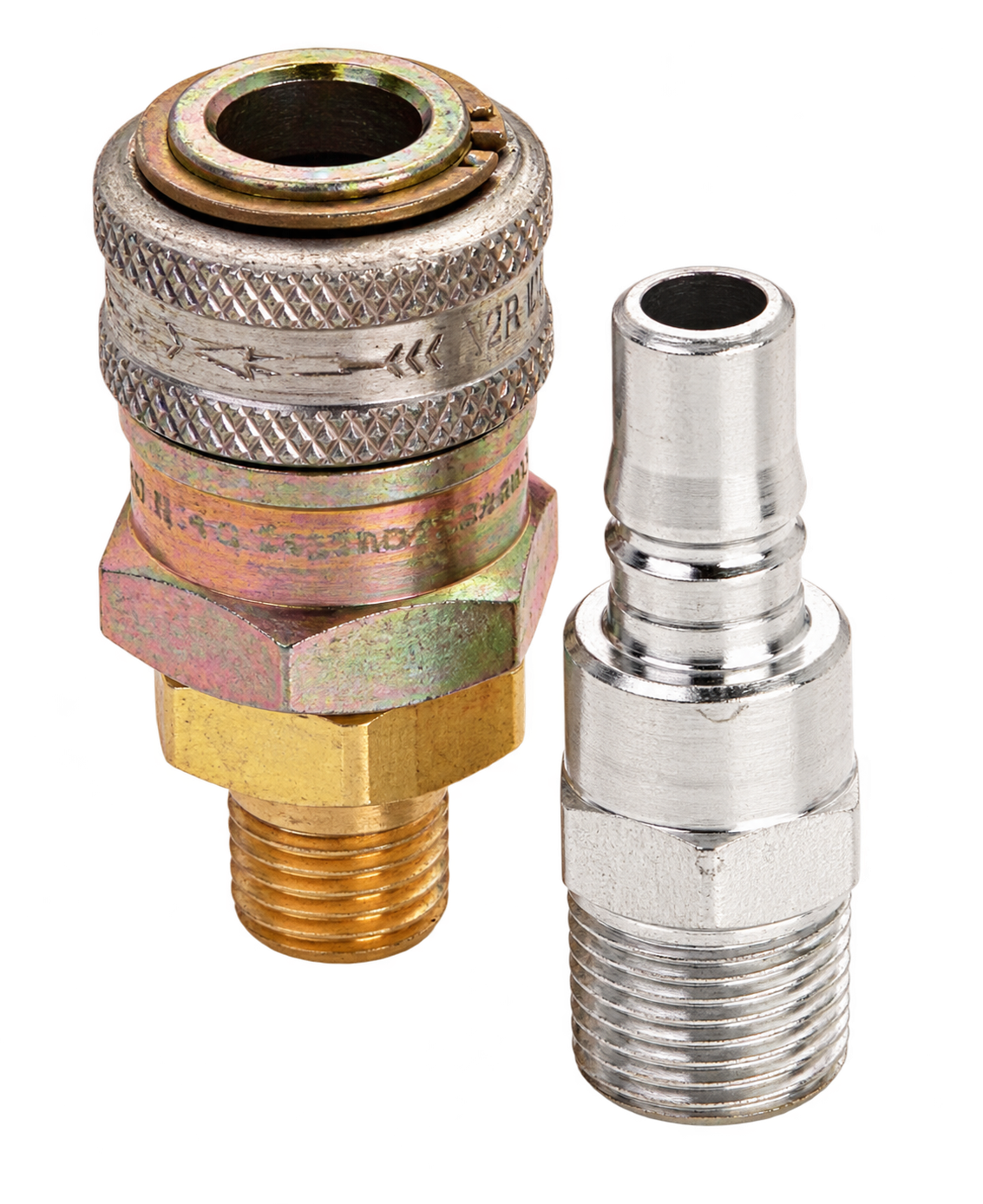

Danfoss Hansen 2R15 – 2RL Series

The Danfoss Hansen 2R15 is a 1/4-inch-body 2RL Series ring-lock pneumatic quick-disconnect socket with a 1/4-18 Male NPTF connection and Buna-N (NBR) seal for compressed-air service.

Specifications

• Part Number: 2R15
• Manufacturer: Danfoss Hansen
• Series: 2RL Series
• Product Type: Pneumatic quick-disconnect socket
• Body Size: ¼ inch
• Connection: 1/4-18 Male NPTF
• Seal Material: Buna-N (NBR)
• Body Material: Zinc-plated steel
• Maximum Working Pressure: 300 psi
• Rated Air Flow: 48 scfm
• Overall Length: 2.16 in (54.9 mm)
• Maximum Diameter: 1.06 in (26.9 mm)
• Hex Size: 0.88 in (22.4 mm)
• Connection Method: Push to connect
• Disconnection Method: Rotate the sleeve approximately 20 degrees, then retract the sleeve
