Hansen Gas-Mate Series
Gas Safety Quick Disconnect Couplings
Danfoss Hansen Gas-Mate Series one-way shut-off safety couplings are designed for connecting gas fired devices and related gas system applications without the need for wrenches.
Gas shut-off couplings for fuel gas connections
Danfoss Hansen Gas-Mate Series couplings are built as one-way shut-off safety couplings for gas fired devices and gas system connections. The series is designed for quick connection and disconnection without tools, while the socket automatically shuts off when the plug is removed to help stop gas flow.
Product Features
Connection Design
- Connect and disconnect without the need for wrenches
- Automatic shut off when the plug is removed from the socket
Safety Function
- Heat sensitive plug allows the socket valve to close in case of fire
- Designed to help stop gas flow when the plug is released
- The plug uses a soldered block to activate the socket valve, and if exposed to fire the solder melts so the valve can close and help prevent fire from moving farther down the line
Materials
- Standard body material: Brass
- CSA design certified for approved gas service conditions
Temperature & Use
- Tested for -40°F to 200°F (-40°C to 93°C) in 3/8, 1/2, 3/4, and 1 sizes
- 1-1/4 size is rated for indoor use only
Gas-Mate operating profile
| Sizes | Max. Operating Pressure (bar) | Max. Operating Pressure (psi) | Min. Burst Pressure (bar) | Min. Burst Pressure (psi) |
|---|---|---|---|---|
| All sizes | 0.03 | 0.5 | 68 | 1,000 |
| Body Size (in) | Socket/Female P/N | Plug/Male P/N | Capacity (btu/hr) |
|---|---|---|---|
| 3/8 | 100006E | 100506 | 60,000 |
| 1/2 | 100008 | 100508 | 90,000 |
| 3/4 | 100010 | 100510 | 245,000 |
| 1 | 100012E | 100512 | 310,000 |
| 1-1/4 | GMS1250FH | GMP1250F | 500,000 |
Capacity is based on natural gas having a specific gravity of 0.64 and heat capacity of 1,000 BTU per cubic foot. Inlet pressure is 12 inches water column and pressure drop is 0.3 inch water column.
Applications
Gas service applications
- Industrial
- Fuel Gas Systems
- Food & Beverage
CSA design certified, in both the United States and Canada, for natural gas, manufactured gas, liquified petroleum, and LP gas-air mixtures at pressures not in excess of 1/2 psig (3.5 kPa).
Compliance
Complies with the requirements of ANSI Z21.41B-2010 / CSA 6.96-2010.
Sockets/Females
Figure 1: Socket/female sizes 3/8 through 1.
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Fig. | A (in) | B (in) | Across Flats (in) | A (mm) | B (mm) | Across Flats (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100006E | Socket/Female | 3/8 | 3/8 | 3/8-18 NPTF | 1 | 2.44 | 1.13 | 0.87 | 62.0 | 28.7 | 22.1 |
| 100008 | Socket/Female | 1/2 | 1/2 | 1/2-14 NPTF | 1 | 2.84 | 1.38 | 1.00 | 72.1 | 35.1 | 25.4 |
| 100010 | Socket/Female | 3/4 | 3/4 | 3/4-14 NPTF | 1 | 3.17 | 1.75 | 1.31 | 80.5 | 44.5 | 33.3 |
| 100012E | Socket/Female | 1 | 1 | 1-11 1/2 NPTF | 1 | 3.94 | 2.13 | 1.50 | 100.1 | 54.1 | 38.1 |

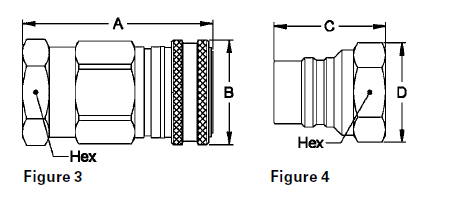

Figure 3: 1-1/4 socket/female.
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Fig. | A (in) | B (in) | Hex (in) | A (mm) | B (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GMS1250FH | Socket/Female | 1-1/4 | 1-1/4 | 1-1/4-11 1/2 NPTF | 3 | 4.15 | 2.28 | 2.00 | 105.4 | 57.9 | 50.8 |
1-1/4 size socket/female is for indoor use only.
Plugs/Males
Figure 2: Plug/male sizes 3/8 through 1.
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Fig. | C (in) | D (in) | Hex (in) | C (mm) | D (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100506 | Plug/Male | 3/8 | 3/8 | 3/8-18 NPTF | 2 | 1.59 | 0.94 | 0.81 | 40.4 | 23.9 | 20.6 |
| 100508 | Plug/Male | 1/2 | 1/2 | 1/2-14 NPTF | 2 | 1.94 | 1.15 | 1.00 | 49.3 | 29.2 | 25.4 |
| 100510 | Plug/Male | 3/4 | 3/4 | 3/4-14 NPTF | 2 | 2.06 | 1.51 | 1.31 | 52.3 | 38.4 | 33.3 |
| 100512 | Plug/Male | 1 | 1 | 1-11 1/2 NPTF | 2 | 2.47 | 1.73 | 1.50 | 62.7 | 43.9 | 38.1 |
Figure 4: 1-1/4 plug/male.
| Part Number | Coupling Type | Body Size | Port Size | Thread Type | Fig. | C (in) | D (in) | Hex (in) | C (mm) | D (mm) | Hex (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GMP1250F | Plug/Male | 1-1/4 | 1-1/4 | 1-1/4-11 1/2 NPTF | 4 | 2.44 | 2.17 | 1.88 | 62.0 | 55.1 | 47.8 |
1-1/4 size plug/male is for indoor use only.
Dust Caps and Dust Plugs
| Series / Body Size | Dust Cap Metal | Dust Cap Vinyl | Dust Plug Metal | Dust Plug Vinyl |
|---|---|---|---|---|
| 3/8 | XPDC2HK | XPPDC2HK | XPDC2HK | XPPDC2HK |
| 1/2 | XPDC3HK | XPPDC3HK | XPDC3HK | XPPDC3HK |
| 3/4 | XPDC4HK | XPPDC4HK | XPDC4HK | XPPDC4HK |
| 1 | XPDC6HK | XPPDC6HK | XPDC6HK | XPPDC6HK |
3/8 and 1/2 metal caps/plugs are brass. 3/4 and 1 metal caps/plugs are aluminum.
